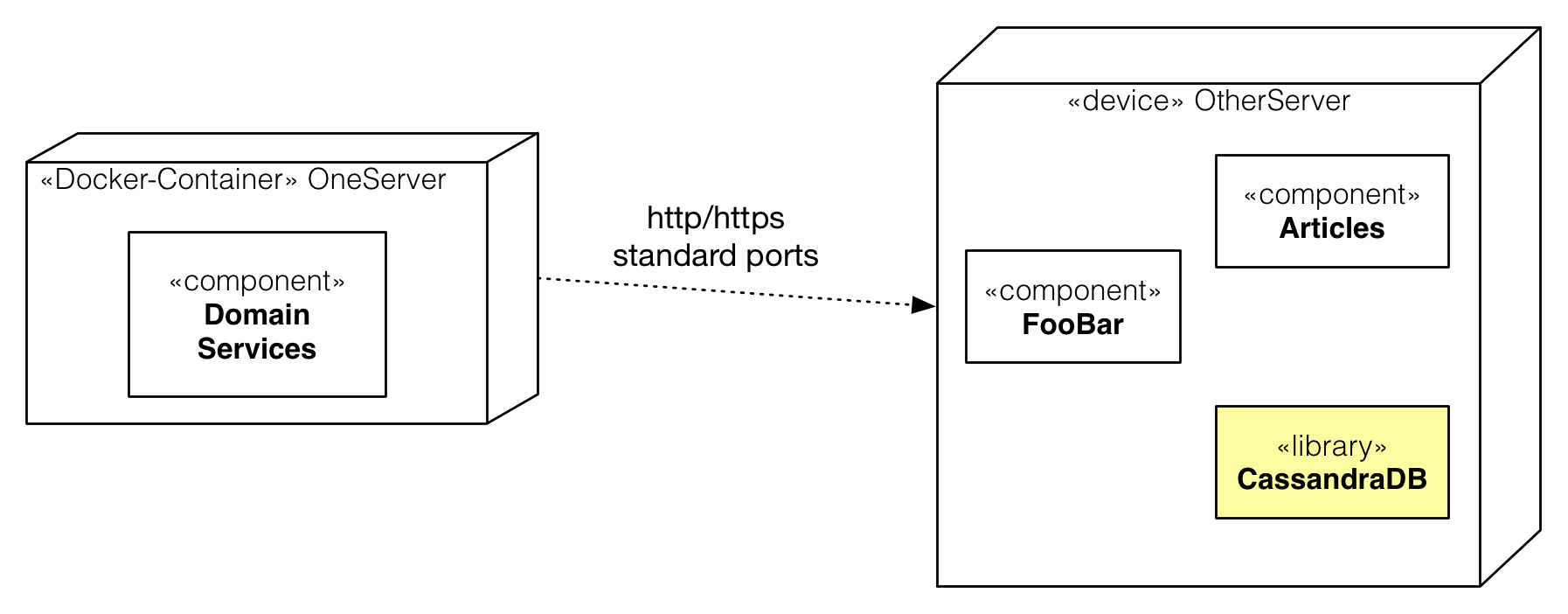

In (UML) deployment diagrams you can show both:
- structure of the hardware involved in the system
- mapping of architecture building blocks to hardware
