Tip 7-4: Document the deployment view hierarchically!
Like in the building block view (see tip 5-2 (hierarchical building block view) )
you can organize and document the deployment view as a hierarchy. That can be especially useful
in heterogeneous or distributed systems.

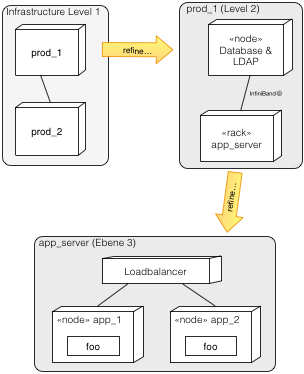

The diagram below gives an example:
