3. Context View
3.2 Technical Context

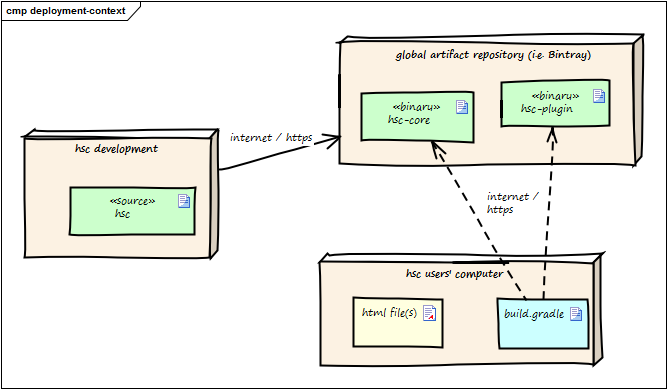

The following diagram shows the participating computers (nodes) with their technical connections plus the major artifacts of HtmlSC, the hsc-plugin-binary.
|Node / Artifact||Description|
|hsc-development||where development of HtmlSC takes place|
|hsc-plugin-binary||compiled and packaged version of HtmlSC including required dependencies.|
|artifact repository||A global public cloud repository for binary artifacts, similar to MavenCentral, the Gradle Plugin Portal or similar. HtmlSC binaries are uploaded to this server.|
|hsc user computer||where arbitrary documentation takes place with html as output formats.|
|build.gradle||Gradle build script configuring (among other things) the HtmlSC plugin to perform the HTML checking.|
For details see the deployment-view.
