7. Deployment View

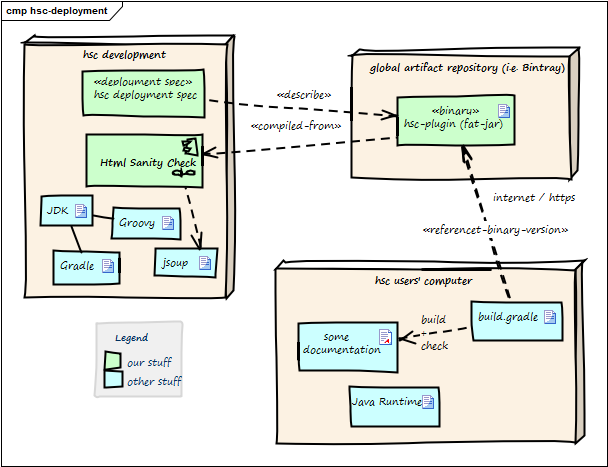

HTML Sanity Checker Deployment Overview

Node / Artifact Description
hsc plugin binary Compiled version of HtmlSC, including required dependencies.
hsc-development Development environment
artifact repository Global public cloud repository for binary artifacts, similar to mavenCentral HtmlSC binaries are uploaded to this server.
hsc user computer Where documentation is created and compiled to HTML.
build.gradle Gradle build script configuring (among other things) the HtmlSC plugin.

The three nodes (computers) shown in the diagram above are connected via Internet.

Prerequisites:

  • HtmlSC developers need a Java development kit, Groovy, Gradle plus the JSoup HTML parser.
  • HtmlSC users need a Java runtime (> 1.6) plus a build file named build.gradle. (within this documentation example we omitted the listing of the build script).
