8. Crosscutting Concepts

8.1 Domain Entity Model

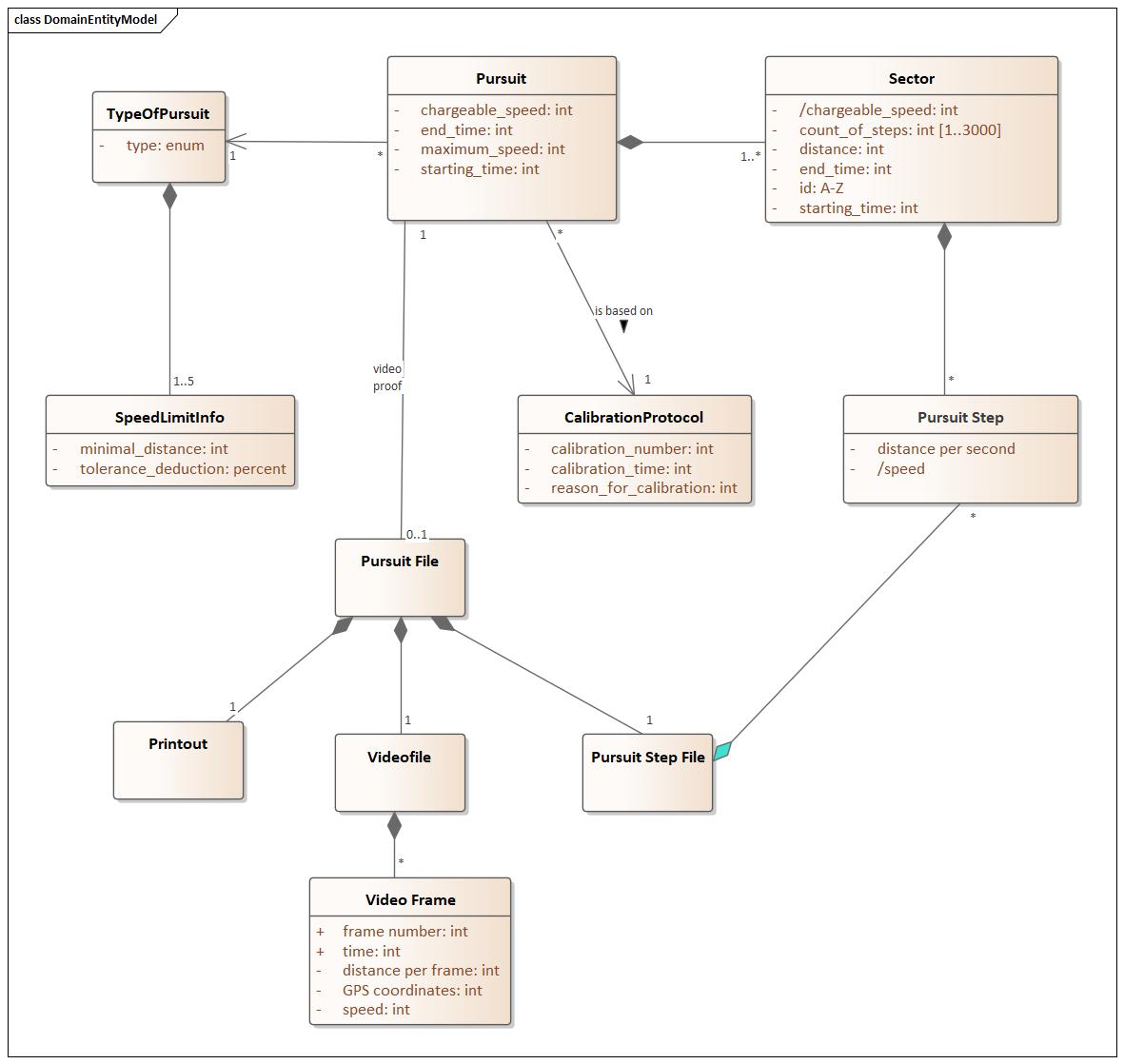

Fig. 8.1: Domain Entity Model

Term  Definition
Frame Interval the smallest period for data sampled by the TPU. It corresponds to the duration of one video frame, which is 40 milliseconds for a frequency of 25 videoframes per second
Distance Per Frame the distance (in millimeters) travelled during one frame
Distance Per Second the distance (in millimeters) travelled during one second
Pursuit Step the measured and calculated data for one second within a pursuit. It consists of pursuit duration, distance, current speed, current maximum violation.
Pursuit Step File a file containing all pursuit steps
Pursuit File a file containing the video, the pursuit step file and the printout for one pursuit.
Pursuit Protocol second-by-second logging of the driven speed + pursuit summary
Sector a part of a complete pursuit
Video Frame one picture within a video stream. Usually we have 25 frames per second.
