8. Crosscutting Concepts

8.1 Domain Terminology

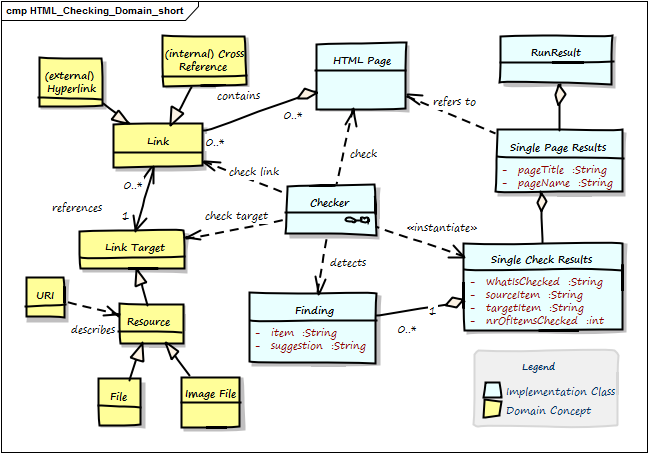

HTML Checking Domain Model

Properties of the implementation classes are private, as we manipulate these via getter/setter methods.

Term Description
Anchor Html element to create ->Links. Contains link-target in the form <a href="link-target">
Cross Reference Link from one part of the document to another part within the same document. Special form of ->Internal Link, with a ->Link Target in the same document.
External Link Link to another page or resource at another domain.
Finding Description of a problem found by one ->Checker within the ->Html Page.
Html Element HTML pages (documents) are made up by HTML elements .e.g., <a href="link target">, <img src="image.png"> and others. See the definition from the W3-Consortium
Html Page A single chunk of HTML, mostly regarded as a single file. Shall comply to standard HTML syntax. Minimal requirement: Our HTML parser can successfully parse this page. Contains ->Html Elements. Synonym: Html Document.
id Identifier for a specific part of a document, e.g. <h2 id="#someHeader">.Often used to describe ->Link Targets.
Internal Link Link to another section of the same page or to another page of the same domain. Also called ->Cross Reference or Local Link.
Link Any a reference in the ->Html Page that lets you display or activate another part of this document (->Internal Link) or another document, image or resource (can be either ->Internal (local) or ->External Link). Every link leads from the Link Source to the Link Target.
Link Target Target of any ->Link, e.g. heading or any other a part of ->Html Documents, any internal or external resource (identified by URI). Expressed by ->id.
Local Resource Local file, either other Html files or other types (e.g. pdf, docx)
Run Result The overall results of checking a number of pages (at least one page).
Single Page Result A collection of all checks of a single ->Html Page.
URI Universal Resource Identifier. Defined in RFC-2396, the ultimate source of truth concerning link syntax and semantic.

Remark: For many web developers or HTML experts the following information on URI syntax might be completely evident. As we wrote this book also for different kind of people, we included this information anyhow.

HtmlSC performs various checks on HTML links (hyperlinks), which usually follow the URI syntax specified by RFC-2396. URIs are generally used to link to arbitrary resources (documents, files or parts within documents).

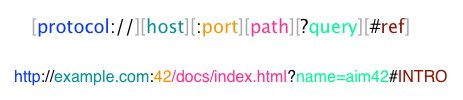

Their general structure is depicted in the following figure - you also find a unit test below.

Figure: Generic URI structure

@Test
public void testGenericURISyntax() {
    // based upon an example from the Oracle(tm) Java tutorial:
    // https://docs.oracle.com/javase/tutorial/networking/urls/urlInfo.html
    def aURL = new URL(
        "https://example.com:42/docs/tutorial/index.html?name=aim42#INTRO");
    aURL.with {
        assert getProtocol() == "http"
        assert getAuthority() == "example.com:42"
        assert getHost() == "example.com"
        assert getPort() == 42
        assert getPath() == "/docs/tutorial/index.html"
        assert getQuery() == "name=aim42"
        assert getRef() == "INTRO"
    }
}

Test showing generic URI syntax”
